We

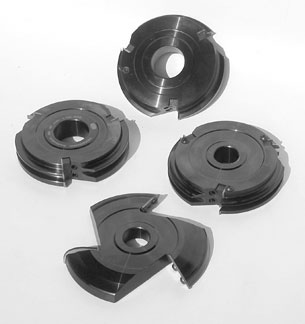

are pleased to offer the Heavy-Duty Insert Cabinet Tooling called
the Cabinator™ geared for today's moulders and shapers. For 3/4" to 1" thick stock.
- Heavy-Duty
Steel Bodies
- Multiple
Profile Choices Increases Versatility
- Designed
for production cabinet applications
- For
moulders, large shapers and tenoners
- Multiple
bore options available including 1-1/4", 1-1/2",
40 mm, 1-13/16"
- Eased
edge on panel groove aids finishing by preventing finishing build-up
at panel joint
|
|
Multiple profiles make this set very versatile
4
Stile & Rail profile options (A, B,C, & D)
4 Drawer Edge detail options (A, B, C & D)
4 Raised Panel profile options (A, B, C & D)
2 Back-Panel Profile Options (E & F)
|
Click
here to see Insert Profile Illustrations
See our Raised Panel Set-ups for Doorminator! |
| STILE
PROFILE CUTTER FOR MOULDERS (with one set of inserts) |
| PART
NO. |
DIA. |
WIDTH |
KNIVES |
BORE |
| H0459411 |
154 mm |
30 mm |
3
|
Specify |
|
| STILE CUTTER
FOR SHAPER (with one set of inserts) Counter Clockwise rotation with material run face down. |
| PART
NO. |
DIA. |
WIDTH |
KNIVES |
BORE |
| H0459431 |
102 mm |
30 mm |
3 |
1-1/4" |
|
| BEARING
FOR STILE CUTTER |
| PART
NO. |
DIA. |
WIDTH |
BORE |
| A0102041 |
82.55 mm |
1/2" |
1-1/4" |
|
| PROFILE KNIFE OPTIONS FOR STILE CUTTER |
| POSITION # |
PROFILE A |
PROFILE B |
PROFILE C |
PROFILE D |
PROFILE E |
| PART # |
CAB-STIL-A |
CAB-STIL-B |
CAB-STIL-C |
CAB-STIL-D |
CAB-STIL-E |
|
| RAIL
PROFILE CUTTER (with one set of inserts) |
| PART
NO. |
ROTATION |
MAT. RUN |
DIA. |
WIDTH |
KNIVES |
BORE |
| H0505691 |
CCW (LH) |
Face Down |
102 mm |
30 mm |
3 |
1-1/4" |
| H0460021 |
CCW (LH) |
Face Down |
154
mm |
30
mm |
3 |
1-1/4" |
| H0459991 |
CW(RH) |
Face Down |
154
mm |
30
mm |
3 |
1-1/4" |
| (For
use with Rail Profile Cutter with the material run face down.) |
|
| PROFILE KNIFE OPTIONS FOR RAIL CUTTER |
| POSITION # |
PROFILE A |
PROFILE B |
PROFILE C |
PROFILE D |
PROFILE E |
| PART # |
CAB-RAIL-A-LH |
CAB-RAIL-B-LH |
CAB-RAIL-C-LH |
CAB-RAIL-D-LH |
CAB-RAIL-E-LH |
| PART # |
CAB-RAIL-A-RH |
CAB-RAIL-B-RH |
CAB-RAIL-C-RH |
CAB-RAIL-D-RH |
CAB-RAIL-E-RH |
|
| DRAWER
AND DOOR EDGE DETAIL CUTTER |
| PART
NO. |
DIA. |
WIDTH |
KNIVES |
BORE |
| H0459451 |
154
mm |
30
mm |
3 |
SPECIFY |
|
| PROFILE KNIFE OPTIONS FOR DRAWER EDGE DETAIL CUTTER |
| POSITION # |
PROFILE A |
PROFILE B |
PROFILE C |
PROFILE D |
PROFILE E |
| PART # |
CAB-EDGE-A |
CAB-EDGE-B |
CAB-EDGE-C |
CAB-EDGE-D |
CAB-EDGE-E |
|
|
| RUB COLLARS FOR PANEL RAISED CUTTER |
| PART NO. |
DIA. |
WIDTH |
BORE |
| A0102041 |
82.55 mm |
1/2" |
1 1/4" |
|
| PANEL
BACK CUTTER (with
one set of inserts) |
| PART
NO. |
ROTATION |
DIA. |
WIDTH |
KNIVES |
BORE |
| H0459521 |
CCW |
130 mm |
16 mm |
3 |
1-1/4" |
| H0505731 |
CW |
130
mm |
16
mm |
3 |
1-1/4" |
| RAISED PANEL REPLACEMENT KNIVES FOR H0459541 (CCW) |
| PART NO. |
DESCRIPTION |
| C0133171 |
Profile A, 43x24x2mm Back Panel Knife |
| C0133211 |
Profile B, 43x24x2mm Back Panel Knife |
| C0133161 |
Profile C,43x24x2mm Back Panel Knife |
| C0133201 |
Profile D,43x24x2mm Back Panel Knife |
| C0272891 |
Profile E,43x24x2mm Back Panel Knife |
| PANEL BACK REPLACEMENT KNIVES FOR H0459521 (CCW) |
| PART NO. |
DESCRIPTION |
| C0133951 |
Profile E,15x25x2mm Back Panel Knife |
| C0133961 |
Profile F,15x25x2mm Back Panel Knife |
| RAISED PANEL REPLACEMENT KNIVES FOR H050711 (CW) |
| PART NO. |
DESCRIPTION |
| CAB-PANEL-A (CW) |
43x24x2mm Back Panel Knife |
| CAB-PANEL-B (CW) |
43x24x2mm Back Panel Knife |
| CAB-PANEL-C (CW) |
43x24x2mm Back Panel Knife |
| CAB-PANEL-D (CW) |
43x24x2mm Back Panel Knife |
| CAB-PANEL-E (CW) |
43x24x2mm Back Panel Knife |
| PANEL BACK REPLACEMENT KNIVES FOR H050731 (CW) |
| PART NO. |
DESCRIPTION |
| CAB-BACK-E (CW) |
15x25x2mm Back Panel Knife |
| CAB-BACK-F (CW) |
15x25x2mm Back Panel Knife |
|
|
