TH73FS Plannex Surfacing Heads
- Planing head with reversible insert knives - 8500 rpm max
- Patented centrifugal fixing system
- Fast and precise knife changes
- HSS or solid carbide knives.
- Steel bodies on heads up to 130mm CL.
- High resistant light alloys on heads 130mm and longer.
- HSS knives equipped standard on stock heads.
- Up to 1/4" Material removed!
Two knife version shown here.
Click here for Replacement Knives.
Click here for Knife Changing Instructions.
A=1-13/16"
B= 40mm
C= 1-1/4"
D= 1-1/2"
Please specify your bore size when you order.
Example:TH73FSA1250802A
Other bores sizes and knife configurations are available upon request. Bolded part numbers represent standard stock Plannex head configurations.
| PART NO. | DIA. | WIDTH | KNIVES | BORE | SUG. USER PRICE |
| TH73FSA1250802 | 125mm | 80mm | 2 | Specify | CALL |
| TH73FSA1251002 | 125mm | 100mm | 2 | Specify | CALL |
| TH73FSA1251202 | 125mm | 120mm | 2 | Specify | CALL |
| TH73FSA1251302 | 125mm | 130mm | 2 | Specify | CALL |
| TH73FSA1251502 | 125mm | 150mm | 2 | Specify | CALL |
| TH73FSA1251702 | 125mm | 170mm | 2 | Specify | CALL |
| TH73FSA1251802 | 125mm | 180mm | 2 | Specify | CALL |
| TH73FSA1251902 | 125mm | 190mm | 2 | Specify | CALL |
| TH73FSA1252302 | 125mm | 230mm | 2 | Specify | CALL |
| TH73FSA1252402 | 125mm | 240mm | 2 | Specify | CALL |
| TH73FSA1401004 | 140mm | 100mm | 4 | Specify | CALL |
| TH73FSA1401304 | 140mm | 130mm | 4 | Specify | CALL |
| TH73FSA1401504 | 140mm | 150mm | 4 | Specify | CALL |
| TH73FSA1401804 | 140mm | 180mm | 4 | Specify | CALL |
| TH73FSA1402304 | 140mm | 230mm | 4 | Specify | CALL |

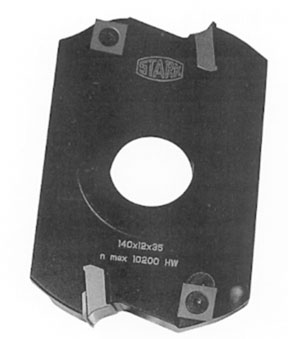

Two knife version shown here.
- Used with TH73 surfacing head on machines requiring an engraver.
- Self-seating gib system
- All standard inventory parts
Click for Set-Up illustration.
Bolded part numbers represent standard stock Plannex head configurations.
| PART NO. | DIA. | WIDTH | KNIVES | SPURS | BORE | SUG. USER PRICE |
| TH75FM05A22 | 145mm | 12mm | 2 | 2 | 1-13/16 in. | CALL |
| TH75FM05D22 | 145mm | 12mm | 2 | 2 | 1-1/2 in. | CALL |
| THSH013850A | 150mm | 12mm | 2 | 2 | 1-13/16 in. | CALL |
| THSH013850B | 150mm | 12mm | 2 | 2 | 40 mm | CALL |
| THSH013850D | 150mm | 12mm | 2 | 2 | 1-1/2 in. | CALL |
| THSH0511301A | 160mm | 12mm | 2 | 2 | 1-13/16 in. | CALL |
| TH75FM07A | 160mm | 12mm | 4 | 4 | 1-13/16 in. | CALL |
| THSH0223901A | 165mm | 12mm | 2 | 2 | 1-13/16 in. | CALL |
| TH75FM08A | 165mm | 12mm | 4 | 4 | 1-13/16 in. | CALL |
