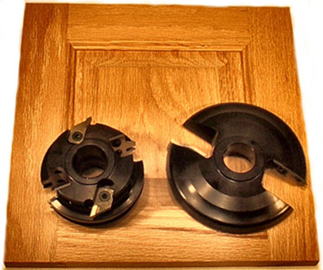

SMALL SHOP INSERT CABINET SET



We are pleased to offer the STARK TOOLING Cabinet Set with Interchangeable Profile Knives

  • Strong Aluminum Alloy Bodies
  • Multiple Profile Choices
  • 5 Popular Stile and Rail Profile Options
  • 5 Popular Raised Panel Options
  • 2 Raised Back Panel Cutter Options
  • 1-1/4" Bore Stocked Cutterheads (reducing bushings available for other arbor sizes).

Extreme flexibility and versatility for today's cost conscience consumer.




Complete Set - CALL

Part No. STK-SMCABSETCOMP1.25
Will cut five different raised panels, two back cuts, five stile and rail profiles, edging and rebating cutter and five outside door/drawer profiles. Includes two ball bearing guides and wrenches. Over $2,000 Value!

One Profile Set - CALL - Call to order.
Same as complete set but with one profile choice option for each cutter. You choose the profile.





HELPFUL HINTS

Click here for Head Configurations or Patterns

Click here to see Illustrations of Profile Knife Choices

Click here to See How a Combination Rail and Stile Cutter will Save you money (includes set-up instructions)


****We also have inserts, replacement knives and cutterhead bodies for the Jesada Insert Doormaker's Cabinet system - Please call 1-800-Tooling! Please provide the Jesada CIK number when ordering knives.
COMBINATION RAIL & STYLE: One head does it all!
Combination Rail & Stile Cutters: One head does it all!
  • Make 5 different profile options with the same cutterhead
  • No need to change cutters, simply adjust the cutter height to mill perfect stile & rail joints.
  • Use with 3/4" to 7/8 " thick stock

Stark's Small Cabinet Shop cutterhead mills both the rail and the stile, but that's not the only reason we say one head does it all. In fact, your cutterhead will accept knives to cut all five profiles. That means this head, teamed up with any of these five sets of solid carbide insert profile knives, will actually take the place of ten different conventional tipped shaper cutters! You'll save both time and money, while increasing your choice of profiles. Heads include wrench and your choice of profile knives.

PART NO. DIA. WIDTH KNIVES BORE SUG. USER PRICE
H0406811 4 in. 50 mm 2 1 1/4" CALL

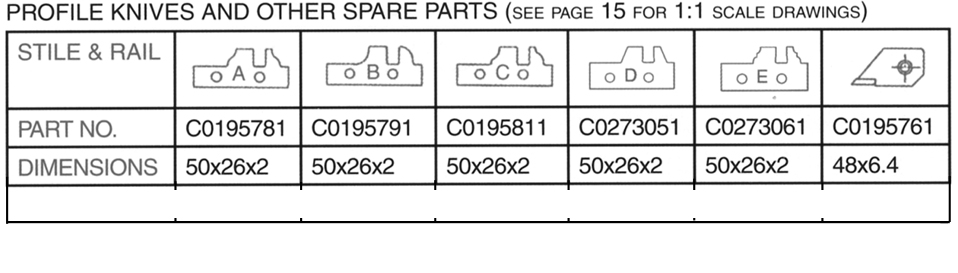

STILE & RAIL SPARE PARTS
RAISED PANEL CUTTERS: Mill 5 different profiles with a single cutterhead!

One cutterhead is all you need to make five of the most popular raised panel profiles. This heavy-duty, aircraft grade aluminum, alloy high tensile strength head body accepts all five sets of solid carbide insert profile raised panel profile profiles. Once you own the cutterhead, you need only purchase additional knives to cut any of the other profiles available for this system. Head comes furnished with your choice of any one of the five profiles and a wrench.

Our back cutter head is also available and offers you the flexibility of two popular back panel cuts for even more options! Let this extremely versatile system go to work for you today! Rub Collars are also available as well.

PANEL RAISE CUTTER (with one set of inserts)
PART NO. DIA. WIDTH KNIVES BORE SUG. USER PRICE
H0406911 5-3/4 in. 21.2 mm 2 1 1/4" CALL

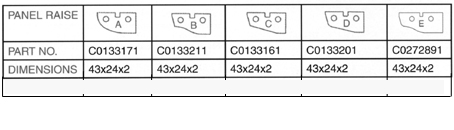

PANEL RAISE SPARE PARTS
PANEL BACK CUTTER (with one set of inserts)

Back Panel Cutter: Mill 2 popular panel back cuts with the same cutter.

Our back cutter head is also available and offers you the flexibility of two popular back panel cuts for even more options! Let this extremely versatile system go to work for you today! Rub Collars are also available as well.

PART NO. DIA. WIDTH KNIVES BORE SUG. USER PRICE
H0407211 4-1/2 in. 14.8 mm 2 1 1/4" CALL
PANEL BACK SPARE PARTS
Stark Tooling
EDGING & REBATING HEAD
  • For shapers and tenoners
  • Excellent results when cutting across the grain. Uses standard 30x12x1.5 carbide knife and 14x14x2 spur
  • Self-seating gib system
  • Comes with one set of inserts
PART NO. DIA. WIDTH KNIVES SPURS BORE SUG. USER PRICE
H0407221 3-1/4 in. 30 mm 2 2+2 1 1/4" CALL
EDGING & REBATING SPARE PARTS
BALL BEARING GUIDE RINGS (rub collars)
Rub Collars are made using precision industrial ball bearings.
