The Air-operated Grease Supply System 5:1 is designed to pump liquids lubricants, i.e. for the filling of gearboxes or in centralised lubricating systems.
This Pumpsystem is only suited to pumping and filling with fairly thin lubricants (max. NLGI Class 1).

This Grease Supply System has the right balance between pressure and capacity. This low-cost equipment is renowned for their high output as well as their low noise level.
All parts coming into contact with the air-supply are made of corrosion-resistant materials, offering long-life reliability. The complete system is designed for simple and all-purpose maintenance.

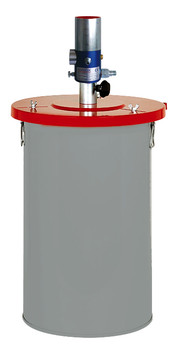

4033200 - Air-Operated Standard Model: 5:1,
Construction type: Standard, Version 50kg
Capacity container (kg) 50kg
Container internal dia.(mm) 35-410
Container height (mm) 640
Suction tube dia. (mm) 32
Suction tube length (mm) 720
Min./Max temperture 10/40
Protection container internal dia.(mm) 375
Protection container internal height (mm) 480
Specification for operation Lubricants up to NLGI 1/5'000 m Pa.s
Output pressure (medium) at operating pressure 10 bar [bar] 27
Output pressure (medium) at operating pressure 6 bar [bar] 45
Delivery rate pro double stroke (cm3)
 20
Delivery rate at pump outlet (cm3/min) 1500
Inlet operating pressure (compressed air) optimum [bar]
 6
Max. air consumption [l/min] 150
Connection (compressed air) optimum [bar] 1/4" BSP
Connection (Medium) thread Thread P 1/4" BSP


RECOMMENDED FROM ABNOX:
Use a maintenance unit when air supplying device contains humidity to prevent corrosion and fouling. Avoid transferring lubricants to protective container.
Use the original container and fit the right follower plate. This will avoid air pockets.
Never leave the pump system on the suction tube on the floor.

This is an air-operated grease supply system consisting of:

Component Parts Article No. Quantity
Air-operated grease pump 4030300 1 piece
Follower plate 4327202 1 piece
Cover plate 4325500 1 piece
