BASIC GUIDELINES

Click here for an enlarged version.

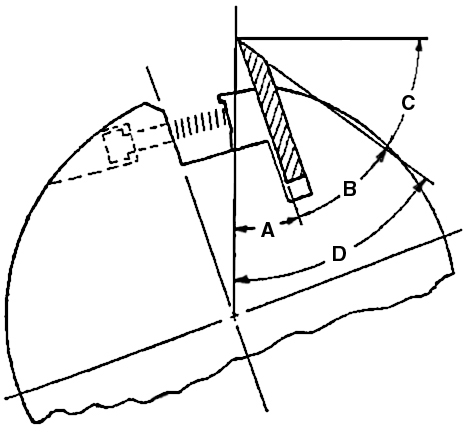

A

Cutting Angle (Hook Angle)

B

Wedge Angle (Blade Angle)

C

Clearance Angle

D

Sharpness Angle


Click here to go to Reference Library & Industry Guidelines


Soft Woods

Hard  Woods

33°

Rough Back Clearance

25-27°

10°

Rough Side Clearance

5°

27-30°

Finish Back Clearance

22-24°

5°

Finish Side Clearance

2.5°

Feed Speed in FPM =

 Spindle Revolution in RPM x No. of Knives

Desired No. of Cuttermarks per inch x12

Number of Cuttermarks Per Inch =

 Spindle Revolution in RPM x No. of Knives

Feed Speed in FPM x 12
