STARK TOOLING Woodworking Insert Tooling>Raised Panel Heads

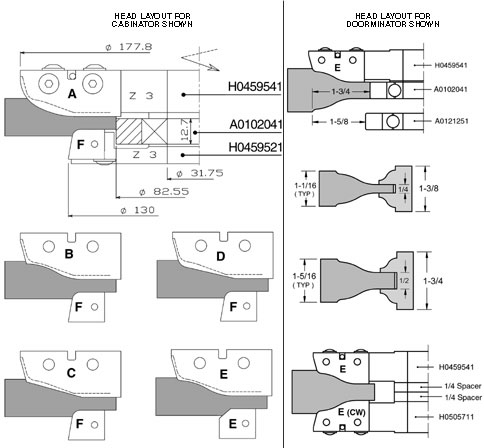

RAISED PANEL HEADS: CABINATOR & DOORMINATOR
PANEL RAISE CUTTERS
PANEL RAISE CUTTER (with one set of inserts)
PART NO. ROTATION DIA. WIDTH KNIVES BORE
H0459541 CCW 178 mm 21 mm 3 1-1/4"
H0505711 CW 178 mm 21 mm 3 1-1/4"
RUB COLLARS FOR PANEL RAISED CUTTER
PART NO. DOOR USE OUTSIDE DIA. WIDTH BORE PANEL DEPTH
A0102041 CABINATOR™
CABINET 		82.55 mm (3-1/4") 1/2" 1-1/4" 1-3/4"
A0121251 DOORMINATOR™ PASSAGE/ENTRY 88.9 mm (3-1/2") 1/2" 1-1/4" 1-5/8"
PANEL BACK CUTTER (with one set of inserts)
PART NO. ROTATION DIA. WIDTH KNIVES BORE
H0459521 CCW 130 mm 16 mm 3 1-1/4"
H0505731 CCW 130 mm 16 mm 3 1-1/4"
