ROYCE/AYR carbide tipped saw blades are made of the highest quality, heat treated saw steel and all blades are carefully tensioned to operate at the required RPM and load conditions. Fine grain, high tensile, tungsten carbide tips are brazed with a high strength silver cadmium alloy to ensure bond on each setting surface. All tips are precision ground and honed.

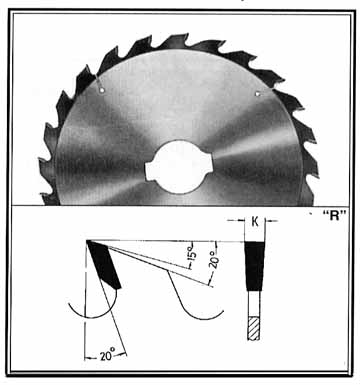

S-20 RIP SAW BLADES For Multiple Saws (R)

Rip Saw for Soft and Hard Woods suitable for multiple ripping operations

Part No.

Diameter inches

Kerf Inch

Bore

PH/KW

Teeth

Price

10100247

10

.142

70

2/20X5

24

CALL

10120247

12

.157

70

2/20X5

24

CALL

10140307

14

.170

70

2/20X5

30

CALL


S-09 METRIC RIP SAW BLADES With Chip Limiter (ER)

Suitable for lengthwise cutting of soft and hardwoods without possibility of kickback

Part No.

Diameter MM

Kerf Inch

Bore

PH/KW

Teeth

Price

09250247

250

.126

70

2/20X5

24

CALL

09300207

300

.126

70

2/20X5

20

CALL

09350247

350

.138

70

2/20X5

24

CALL

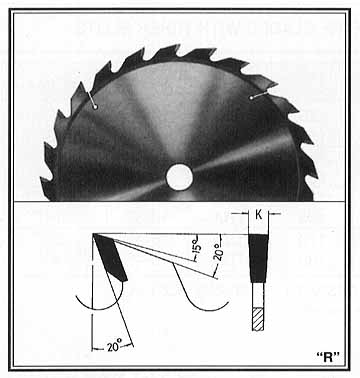

S-20 STANDARD RIP SAW BLADES (R)

"R" -Standard Rip Saw Blades for ripping soft and hardwoods. Suitable for table saws and multiple rip saws.

Part No.

Diameter inches

Plate MM

Kerf  Inch/ MM

Bore

Teeth

Price

10100240

10

2.4

.134/ 3.6

5/8"

24

CALL

10120241

12

2.8

.158/ 4.0

1"

24

CALL

10120301

12

2.8

.158/ 4.0

1"

30

CALL

10140241

14

3.0

.170/ 4.3

1"

24

CALL

10140301

14

3.0

.170/ 4.3

1"

30

CALL

10140361

14

3.0

.170/ 4.3

1"

36

CALL

10160301

16

3.0

.170/ 4.3

1"

30

CALL

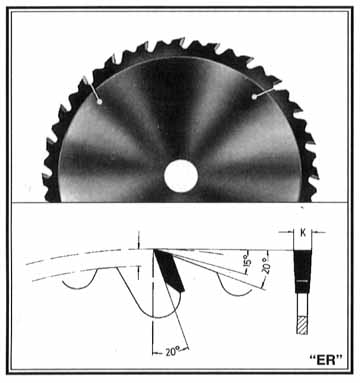

S-09 METRIC-RIP SAW BLADES with Chip Limiter  (ER)

"ER"- Chip thickness limiter for ripping soft, hard and exotic woods, with chip limiter to reduce kickbacks. For use on tables saws or multi-rip saws.

Part No. Diameter MM Plate MM Kerf  Inch/ MM Bore Teeth Price Click to Buy
09300201 300 2.2 .126/ 3.2 1" 20 $90.50

CALL

09350241 350 2.5 .138/ 3.5 1" 24 $97.00

CALL

09400281 400 2.5 .138/ 3.5 1" 28 $121.05

CALL

09450321 450 2.8 .150/ 3.8 1" 32 $159.50

CALL

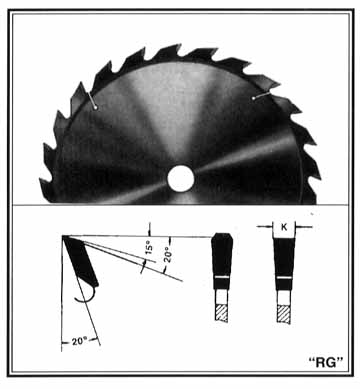

S-22  GLUE JOINT RIP SAW BLADES  (RG)

"RG"- TRIPLE CHIP TOOTH for perfect glue joints on soft or hard woods, especially suited for straight line rip saws.

Part No.

Diameter inches

Plate MM

Kerf  Inch/ MM

Bore

Teeth

Price

12120363

12

2.8

.158/ 4.0

3 1/8" *

36

CALL

12140361

14

3.0

.170/ 4.0

1"

36

CALL

12160361

16

3.0

.170/ 4.0

1"

36

CALL

* For Mereen-Johnson Machines

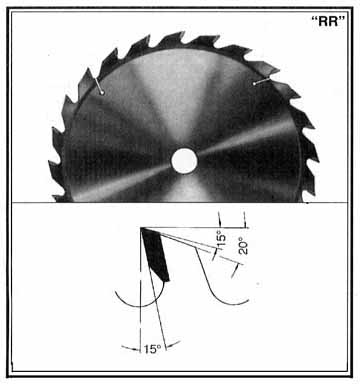

S-23  RADIAL ARM-PENDULUM SAW BLADES  (ATB-R)

"RR"- for use on radial arm or pendulum type saws.

Part No. Dia. inches Plate MM Kerf  Inch/ MM Bore Hook degrees Teeth Price
13100240 10 2.4 .142/ 3.6 5/8" 25 24

CALL

13120301 12 2.8 .158/ 4.0 1" 25 30

CALL

13140361 14 3.0 .165/ 4.2 1" 25 36

CALL

13160401 16 3.0 .165/ 4.2 1" 25 40

CALL

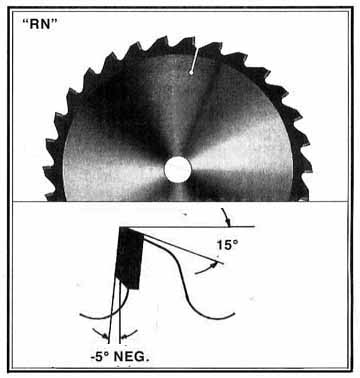

S-23N  RADIAL ARM-PENDULUM SAW BLADES  (ATB-R)

"RN"- negative hook tooth angle offers lower resistance, making hand operation easier and safer.

Part No. Dia. inches Plate MM Kerf  Inch/ MM Bore Hook degrees Teeth Price
13100240N 10 2.4 .142/ 3.6 5/8" -5 24

CALL

13120301N 12 2.8 .158/ 4.0 1" -5 30

CALL

13140361N 14 3.0 .165/ 4.2 1" -5 36

CALL

13160401N 16 3.0 .165/ 4.2 1" -5 40

CALL


PRO-LINE Professional Saw Blades  (Type "P-27" Cut-Off) (ATB)

Part No. Diameter inches Kerf  Inch Bore Grind Teeth Price
P1710060 10 .125 5/8" ATB 60T

CALL

P1710080 10 .125 5/8" ATB 80T

CALL


PRO-LINE Professional Saw Blades  (Type "P-21" Triple Chip) (TCG)

Part No. Diameter inches Kerf  Inch Bore Grind Teeth Price
P2110060 10 .125 5/8" ATB 60T

CALL

P2110080 10 .125 5/8" ATB 80T

CALL
