 CMT's NEW INDUSTRIAL BLADES | ||||||||||
 | CMT's Industrial Blades Feature: | |||||||||
| CMT USA's new line of heavy duty industrial blades aren't really new at all - they have been proven in the most demanding production environments in Europe. Now they are available to professional and industrial woodworkers in the USA, and they bring a hose of serious features. Every blade is formed from tough, high-quality European steel, and laser-cut to precise tolerances. Every step in the process - cutting, brazing, tensioning and grinding - computer controlled and subjected to rigorous quality control. The result is blade that stands up to the toughest industrial use and the most exacting performance requirements. | ||||||||||

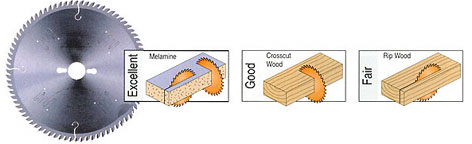

| CMT's LAMINATE & CHIPBOARD INDUSTRIAL BLADES | |||||||||
 | |||||||||
| Theis is an ideal blade for use with laminates, chipboard or 2-side melamine (when used with scoring blade, Click here to go to Scoring Blades). It features a triple chip grind and 5 or 10 degree positive hook. | |||||||||
| Item# | Dia. | Teeth | Bore | Pinhole | Grind | Kerf | Plate | Hook Angle | List Price |
| 281.064.09M | 220mm | 64 | 30mm | +2/7/42 | TCG | 3.2mm | 2.2mm | 10° | CALL |
| 281.080.10 | 10" | 80 | 5/8" | N/A | TCG | 0.126" | 0.087" | 5° | CALL |
| 281.080.10M | 250mm | 80 | 30mm | 2/10/60 +2/7/42 | TCG | 3.2mm | 2.2mm | 10° | CALL |
| 281.096.12 | 12" | 96 | 1" | N/A | TCG | 0.126" | 0.087" | 5° | CALL |
| 281.096.12M | 300mm | 96 | 30mm | 2/10/60 +2/7/42 | TCG | 3.2mm | 2.2mm | 10° | CALL |
| 281.108.14M | 350mm | 108 | 30mm | 2/10/60 +2/7/42 | TCG | 3.5mm | 2.2mm | 10° | CALL |

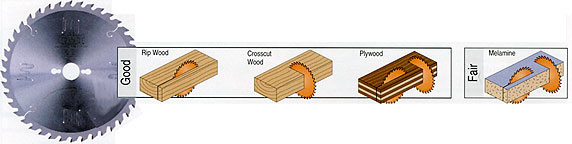

| CMT's HEAVY-DUTY GENERAL PURPOSE BLADES | |||||||||
 | |||||||||
| These are extremely versatile blades, delivering fast, efficient cuts in a very wide variety of materials. Use them in hard or soft wood or plywood. They feature alternate top bevel teeth and an aggressive 12 or 15° hook. | |||||||||
| Item# | Dia. | Teeth | Bore | Pinhole | Grind | Kerf | Plate | Hook Angle | List Price |
| 285.040.10 | 10" | 40 | 5/8" | N/A | 30°Hi ATB | 0.126" | 0.098" | 12° | CALL |
| 285.040.10M | 250mm | 40 | 30mm | 2/10/60 +2/7/42 | 10°ATB | 3.2mm | 2.2mm | 15° | CALL |
| 285.048.12 | 12" | 48 | 1" | N/A | 30°Hi ATB | 0.126" | 0.098" | 12° | CALL |
| 285.048.12M | 300mm | 48 | 30mm | 2/10/60 +2/7/42 | 10°ATB | 3.2mm | 2.2mm | 15° | CALL |
| 285.054.14M | 350mm | 54 | 30mm | 2/10/60 +2/7/42 | 10°ATB | 3.5mm | 2.2mm | 15° | CALL |
| 285.072.14M | 350mm | 72 | 30mm | 2/10/60 +2/7/42 | 10°ATB | 3.5mm | 2.2mm | 15° | CALL |

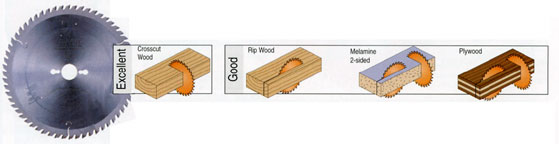

| CMT's HEAVY-DUTY FINE CUTOFF AND FINISHING BLADES |
|||||||||
 | |||||||||
| Here is the all-around cut off blade for an amazing array of stock: hardwood, softwood, plywood, melamine, MDF and more! The 10 degree hook provides a fast cut, while the 10 or 15 degree ATB angle makes sure you get a clean cut. | |||||||||
| Item# | Dia. | Teeth | Bore | Pinhole | Grind | Kerf | Plate | Hook Angle | List Price |
| 285.060.10M | 250mm | 60 | 30mm | 2/10/60 +2/7/42 | 15°ATB | 3.2mm | 2.2mm | 10° | CALL |
| 285.072.12M | 300mm | 72 | 30mm | 2/10/60 +2/7/42 | 15°ATB | 3.2mm | 2.2mm | 10° | CALL |
| 285.080.10 | 10" | 80 | 5/8" | N/A | 20°ATB | 0.126" | 0.087" | 10° | CALL |
| 285.080.10M | 250mm | 80 | 30mm | 2/10/60 +2/7/42 | 15°ATB | 3.2mm | 2.2mm | 10° | CALL |
| 285.096.12 | 12" | 96 | 1" | N/A | 20°ATB | 0.126" | 0.087" | 10° | CALL |
| 285.096.12M | 300mm | 96 | 30mm | 2/10/60 +2/7/42 | 15°ATB | 3.2mm | 2.2mm | 10° | CALL |
| 285.108.14M | 350mm | 108 | 30mm | 2/10/60 +2/7/42 | 15°ATB | 3.2mm | 2.2mm | 10° | CALL |
