 CMT's INDUSTRIAL GLUE LINE RIPPING BLADES | ||||||||
| For heavy duty glue line rip cuts with sand free exceptional finish in soft and hard woods. | ||||||||
| Item# | Dia. | Teeth | Bore | Grind | Kerf | Plate | Hook Angle | List Price |
| 203.030.08 | 8" | 30 | 5/8" | TCG | 0.126 | 0.087 | 12° | CALL |
| 203.030.10 | 10" | 30 | 5/8" | TCG | 0.126 | 0.087 | 12° | CALL |
| 203.036.12 | 12" | 36 | 1" | TCG | 0.165 | 0.110 | 12° | CALL |
| 203.036.14 | 14" | 36 | 1" | TCG | 0.165 | 0.110 | 12° | CALL |

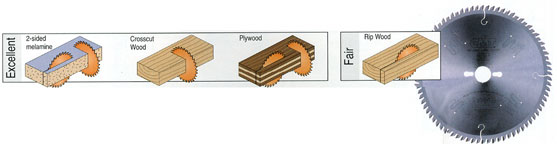

| CMT's 40 Degree ATB MELAMINE FINE CUT OFF BLADES | |||||||||
 | |||||||||
| These are the best choice for cut off work in fine, delicate materials such as 2-sided laminates and veneers. The extra-high 40 degree top bevel angle produces the absolute minimum of chipping on both surfaces. | |||||||||
| Item# | Dia. MM | Teeth | Bore MM | Pinhole | Grind | Kerf MM | Plate MM | Hook Angle | List Price |
| 283.064.09M | 220 | 60 | 30 | 2/7/42 | 40°ATB | 3.2 | 2.2 | -5° | CALL |
| 283.080.10M | 250 | 80 | 30 | 2/10/60 +2/7/42 | 40°ATB | 3.2 | 2.2 | -2° | CALL |
| 283.096.12M | 300 | 96 | 30 | 2/10/60 +2/7/42 | 40°ATB | 3.2 | 2.2 | 2° | CALL |
| 283.108.14M | 350 | 108 | 30 | 2/10/60 +2/7/42 | 40°ATB | 3.2 | 2.2 | 5° | CALL |
| CMT's INDUSTRIAL CABINET SHOP BLADES | ||||||||
| For heavy duty cross cuts, perfect finishing on single sided laminated panels. For use on chip board, MDF, laminate, hard wood and plywood. | ||||||||
| Item# | Dia. | Teeth | Bore | Grind | Kerf | Plate | Hook Angle | List Price |
| 281.060.10 | 10" | 60 | 5/8" | TCG | 0.126 | 0.087 | 10° | CALL |
| 281.080.10 | 10" | 80 | 1" | TCG | 0.126 | 0.087 | 5° | CALL |
| 281.072.12 | 12" | 72 | 1" | TCG | 0.126 | 0.087 | 10° | CALL |
| 281.096.12 | 12" | 96 | 1" | TCG | 0.165 | 0.110 | 5° | CALL |
| 281.084.14 | 14" | 84 | 1" | TCG | 0.157 | 0.110 | 10° | CALL |
| 281.096.16 | 16" | 96 | 1" | TCG | 0.157 | 0.110 | 10° | CALL |
| CMT's SCORING BLADES | |||||||
| Top-quality scoring blades are essential in many applications, especially with melamine and other laminates. We offer two types: The Conical grind tooth allows you to make different cut widths by increasing or decreasing the cut height. The Flat grind allows you to adjust the cut width by varying the number of shields. |  | ||||||
| Item# | Dia. MM | Teeth | Bore MM | Type | Grind | Kerf MM | List Price |
| 288.100.20H | 100 | 20 | 20 | Conical | Conical | 3.1-4 | CALL |
| 288.120.24H | 120 | 24 | 20 | Conical | Conical | 3.1-4 | CALL |
| 288.120.24K | 120 | 24 | 22 | Conical | Conical | 3.1-4 | CALL |
| 288.125.24H | 125 | 24 | 20 | Conical | Conical | 3.1-4 | CALL |
| 288.125.24K | 125 | 24 | 22 | Conical | Conical | 3.1-4 | CALL |
| 289.100.20H | 100 | 10+10 | 20 | Adjustable | Flat | 2.8-3.6 | CALL |
| 289.100.20K | 100 | 10+10 | 22 | Adjustable | Flat | 2.8-3.6 | CALL |
| 289.120.24H | 120 | 12+12 | 20 | Adjustable | Flat | 2.8-3.6 | CALL |
| 289.120.24K | 120 | 12+12 | 22 | Adjustable | Flat | 2.8-3.6 | CALL |
| 289.125.24H | 125 | 12+12 | 20 | Adjustable | Flat | 2.8-3.6 | CALL |
