CARBIDE TIPPED BITS Ogee Fillet Bits w/Ball Bearing Pilot
Beading Bits Rabbeting Bits w/Ball Bearing Pilot
Boring Point Rounding Over Roman Ogee w/Ball Bearing Pilot
Bowl and Tray Bits Round Nose Bits/Core Box
Bull Nose (Half round) Bits Rounding Over Bits with Ball Bearing Pilot
Chamfer Bits w/Ball Bearing Pilot Round Over/Beading Bits
Classical Bits Straight Bits
Classical Bits w/Ball Bearing Pilot Wavy Edge Bits w/Ball Bearing Pilot
Cove Bits w/Ball Bearing Pilot SOLID CARBIDE BITS
Cove & Bead Bits w/Ball Bearing Pilot Bevel Trim Bit 1/4 " Cutting Edge
Edge Beading Bits w/Ball Bearing Pilot Flush Trim Bit 1/4 " Cutting Edge
Ogee Bits Round Bottom Veining Bits
Flush Trim - Three Flute Two-Flute Round Bottom Veining Bits
SOLID CARBIDE COMPRESSION BITS CARBIDE INSERT CNC SURFACING SPOILBOARD CUTTERS
Flush Trim Up/Down Cut Spiral Bit CNC Spoilboard Surfacing Bit w/Up Shear
Double Round Over w/adj.cutting length CNC Spoilboard Surfacing Straight Cut Bit

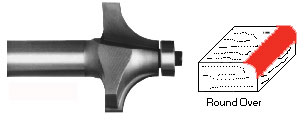

Carbide-Tipped Rounding Over Bits with Ball Bearing Pilot

For edge applications requiring a shielded ball bearing guide that will not mar the work. High Axial and radial hook angles for excellent chip removal and smoothness of cut. Another fine Router Bit from Whiteside Machine Company. Additional sizes available.

NOTE: Use B3 for Rounding Over, Use B2 for Beading and Use B4 for 2013 thru 2016.

Product Number Cutting Radius Large Diameter Cutting Length Shank Diameter Price
2000C 1/8 3/4 1/2 1/4 CALL
2000 3/16 7/8 1/2 1/4 CALL
2001 1/4 1 1/2 1/4 CALL
2002 5/16 1-1/8 1/2 1/4 CALL
2003 3/8 1-1/4 5/8 1/4 CALL
2004 1/2 1-1/2 3/4 1/4 CALL
2005 3/16 7/8 1/2 1/2 CALL
2006 1/4 1 1/2 1/2 CALL
2007 5/16 1-1/8 1/2 1/2 CALL
2008 3/8 1-1/4 5/8 1/2 CALL
2009 1/2 1-1/2 3/4 1/2 CALL
2010 3/4 2 1 1/2 CALL
2011 7/8 2-1/4 1-1/8 1/2 CALL
2012 1 2-1/2 1-5/16 1/2 CALL
2013 1-1/8 3 1-1/2 1/2 CALL
2014 1-1/4 3-1/4 1-3/4 1/2 CALL
2015 1-3/8 3-1/2 1-3/4 1/2 CALL
2016 1-1/2 3-3/4 1-7/8 1/2 CALL

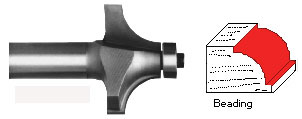

Carbide-Tipped Round Over/Beading Bits

For edge applications requiring a shielded ball bearing guide that will not mar the work. High Axial and radial hook angles for excellent chip removal and smoothness of cut. Another fine Router Bit from Whiteside Machine Company. Additional sizes available.

NOTE: Use B3 for Rounding Over, Use B2 for Beading and Use B4 for 2013 thru 2016.

Product Number Radius Large Diameter Cutting Length Shank Diameter Price
2100A 1/16 5/8 1/2 1/4 CALL
2100C 1/8 3/4 1/2 1/4 CALL
2100D 5/32 13/16 1/2 1/4 CALL
2100 3/16 7/8 1/2 1/4 CALL
2101 1/4 1 1/2 1/4 CALL
2102 5/16 1-1/8 1/2 1/4 CALL
2103 3/8 1-1/4 5/8 1/4 CALL
2104 1/2 1-1/2 3/4 1/4 CALL
2105 3/16 7/8 1/2 1/2 CALL
2106 1/4 1 1/2 1/2 CALL
2107 5/16 1-1/8 1/2 1/2 CALL
2108 3/8 1-1/4 5/8 1/2 CALL
2109 1/2 1-1/2 3/4 1/2 CALL
2110 3/4 2 1 1/2 CALL

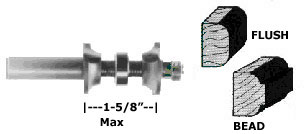

Double Round Over (with adjustable Cutting Length)
Assemblies Sold with B5 Bearing for flush round over. Use B20 Bearing for 1/16" Bead Use B27 Bearing for 1/8" Bead. Replacement Cutter Heads: Add RH to part number for cutter next to shank, add LH to part number for end cutter. (example: 2160LH)
Product Number Radius Large Diameter Overall Length Shank Diameter Price
2160 1/8 1-1/8 3-3/4 1/2 CALL
2162 3/16 1-1/4 3-3/4 1/2 CALL
2164 1/4 1-3/8 3-3/4 1/2 CALL
